MT2625 is an NB-IoT R14 enabled SoC that will enable ultra-low power and cost effective IoT devices for a wealth of applications ranging through home, civic, industrial or mobile use. It’s highly integrated design incorporates an NB-IoT modem DSP, antenna RF and base-band analogue front-end. Other integral components include an ARM Cortex-M MCU with internal RAM, plus Flash, PSRAM, and a power management unit (PMU). Extensive peripheral I/O extensions include SDIO, UART, I2C, I2S, SPI and PCM. Despite its high functionality, its tiny package size and low pin-count yields cost and size effective designs for many applications, while its highly integrated platform simplifies the product design process for partners.

With a Real time operation system (RTOS) base, it’s easily customizable for applications such as home automation, cloud beacons, smart metering and many other static or mobile IoT implementations.

Its wideband front-end module is designed to support all ultra-low/low/mid bands defined by the 3GPP Rel-14, including up to Quad-band operation, allowing a single design to address worldwide markets, reducing cost and development time.

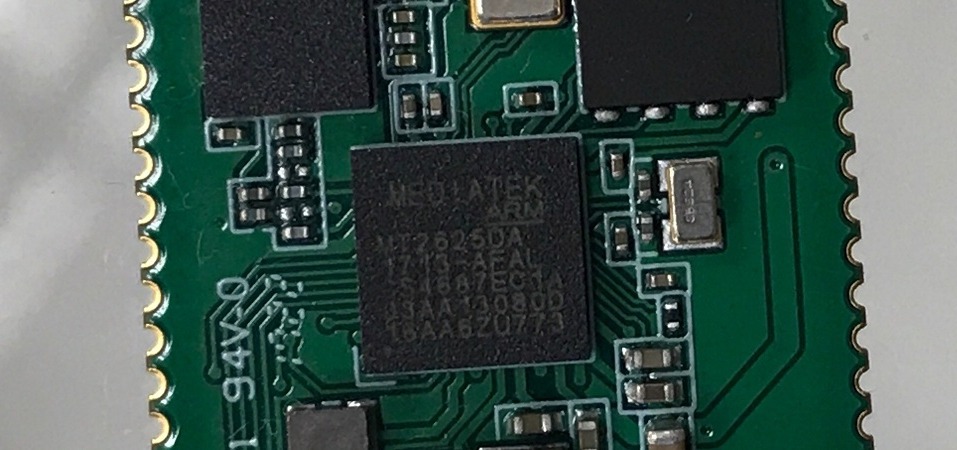

Image credit: Mediatek
